Wenglor

---

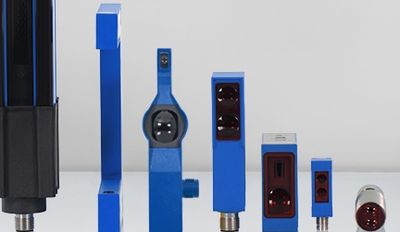

wenglor sensoric is your competent partner for photoelectronic sensors. Our diverse range of innovative products provide solutions for complex automation applications. Our photoelectronic sensors can detect or count objects without contact, measure distances with high accuracy and identify colors, brightness or luminescence.
Various mounting systems allow for easy, flexible installation. Fiber optic cables that can be connected to sensors allow them to be used under extreme conditions or in tight spaces.

wenglor ultrasonic sensors are almost completely insensitive to interfering factors (such as extraneous light, dust, smoke, mist, vapor, lint, oily air, etc.). They are best suited for the detection of transparent and dark objects, reflective surfaces, shiny objects and of bulk materials and liquids. Ultrasonic sensors allow for the reliable detection and measurement of objects, independent of their material, color, transparency and texture.
wenglor ultrasonic sensors are characterized by their ease of use and excellent technical properties.

They send pulsed ultrasonic waves of a certain frequency and determine the objects distance from the duration of the ultrasound that it reflects. The output switches if the specified switching point is reached. The measured value is output as a voltage value (0...10 V/4...20 mA) or in digital form (IO-Link).

wenglor inductive sensors are suitable for a wide variety of applications thanks to the variety of designs, housing materials and operating principles in the range. They are characterized by their high switching distances. This allows various standard applications to be covered by just one design.
Thanks to the lack of moving parts, these sensors are maintenance-free, wear-free, waterproof and resistant to dirt and shocks. They are short-circuit proof and can also be installed in any position. The service life of the sensors is not dependent on the switching frequency or number of measurement cycles.

An LC resonant circuit is arranged under the active surface of the inductive sensors. The electromagnetic field generated by this is affected when metals approach it (e.g. steel, aluminum, or brass). The output switches as soon as the metal reaches the set switching distance.

Reliable and stable processes involving liquid and gaseous media necessitate continuous, intelligent process monitoring. Fluid sensors from wenglor assure fully transparent production sequences. They acquire relevant parameters such as pressure, flow rate, temperature and fill-level in systems and machines.

Thanks to their extremely fast response times, fluid sensors deliver accurate measured values to the controller in real-time via the IO-Link interface. Sequences can be optimized, the consumption of resources can be reduced and system availability can be increased on the basis of the acquired data – for more productivity and efficiency.

The high-performance fluid sensors are amongst the most accurate products within their respective categories. Furthermore, sensors from the weFlux² series offer a unique scope of functions: they combine two measuring functions along with an analysis module in a compact stainless steel housing.

With more than 1000 fluid sensors, the broad-based product portfolio provides the ideal solution for any conceivable customer requirements.

wenglor’s weFlux² product range includes pressure sensors, flow sensors and temperature sensors which are distinguished by their characteristic stainless steel housings in hygienic design. The product range is based on a modular platform making it possible to adapt housing, probe length, process connections and sensor outputs to customer-specific requirements.

uni series sensors for pressure, flow rate and temperature are distinguished by their large, user-friendly display. wenglor’s LevelTech range makes sensors available for universal fill-level measurement in industrial and hygienic applications.

Wenglor CP70QXVT80   Sensor   Wenglor EK96VBS687 Sensor   Wenglor FFAP265 Sensor   Wenglor HM24PA2 Sensor   Wenglor I12H015 Sensör   Wenglor I12H023 Switch   Wenglor I1QH004 Inductive Sensor   Wenglor I30H004 Inductive Sensor   Wenglor OY1P303P0102 Sensor   Wenglor OY1P303P0102 Sensor   Wenglor OY2P303A0135 High-performance   Distance Sensor   Wenglor OY2P303A0135 High-performance   Distance Sensor   Wenglor OY2P303A0135 High-performance   Distance Sensor   Wenglor OY2TA403AT235 Sensor   Wenglor SK 96 Sensor   Wenglor UF66VCF3S865 26/5000 Fiber Optic Cable Sensor   Wenglor YH08PCT8 Sensor   Wenglor YH08PCT8 Sensor   Wenglor YH08PCT8 Sensor   Wenglor YH08PCT8 Sensor   Wenglor YO11PA3 Sensör
